Double Clipper BCS-200AM

The CLIP SYSTEMS BCS-200AM is a new, fully automatic double clipper that can be mechanically connected to any filler. The automatic clipper has been specially designed for all types of casing in a calibre range from 25 to 100 mm (0.98 - 3.94 inches). The ideal machine for small, medium and large-scale trades as well as industrial companies that manufacture small and medium-sized products.

  • Works with the E200-clip series on spools
  • Automatic filling, clipping and cutting

Highlights

01

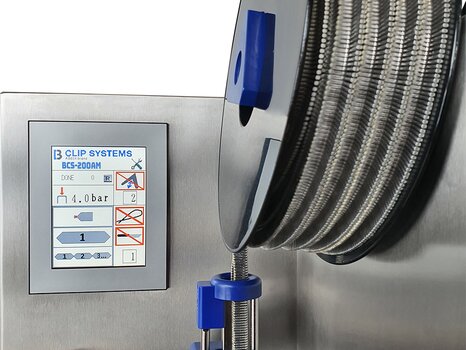

Touchscreen control

The BCS-200AM is controlled and service inspections are conducted from an integrated touchscreen. The number of portions produced and important operating parameters can be checked on the screen.

02

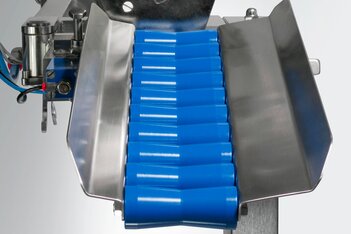

Smooth removal

The finished portions are removed gently and smoothly on the support plate with rollers.

Technical data

Height
1800 mm | 70.87"
Width
1200 mm | 47.24"
Length
760 mm | 29.92"
Weight
115 kg | 253.53 lbs
Capacity
4500 - 6500 / spool
Calibre
25 - 100 mm | 0.98 - 3.94"
Pressure
6 bar | 90 psi
Operating mode
Fully automatic
Air consumption per stroke
10l Performance at 58 psi / 4 bar (0.62 MPa)

Applications

icon
Meat & Poultry
icon
Cheese & diary
icon
Vegan Products
icon
Chemicals
icon
Other Food
